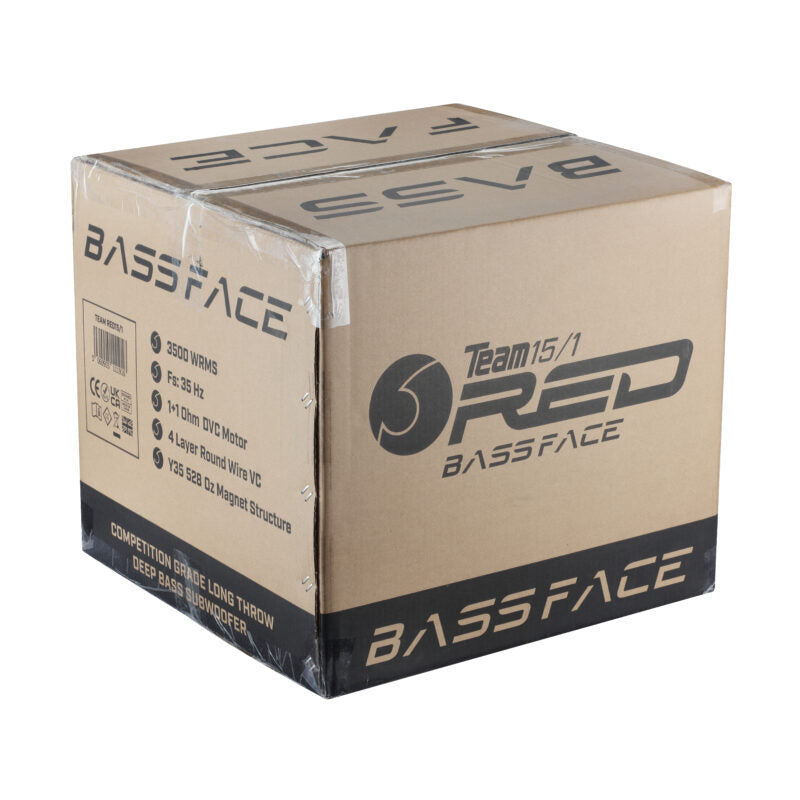

Bassface TEAMRED15/1

SPEAKER DATA
Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 7000
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 3500
Overall Diameter (mm) 397
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 256
Installation Cut-Out Diameter (mm) 358
Overall Depth (mm) 307
Mounting Depth (mm) 270
Front Protrusion From Mounting Plane (mm) 37
Recommended Frequency Range (Hz) 15>90
Impedance (Ohm) (Nominal) 2+2
Sensitivity (db/1Wm) 88.68
Total Magnet Weight (Oz) 528
Magnet Size (mm) 253*25
Magnet Type Y35
Magnet Qty 3
Top Plate thickness (mm) 24
Back Plate Thickness (mm) 20
Optimum Bass Enclosure Type Ported
Recommended Bass Enclosure Volume (CuFt) 3.88
Recommended Bass Enclosure Tuning Frequency (Hz) 28-50
Voice Coil Former Spec Aluminium
Voice Coil Type CCA Round Wire
Voice Coil External Diameter (mm) 95.5
Voice Coil Internal Diameter (mm) 88.5
Voice Coil Winding Height (mm) 70
Voice Coil Winding (Layers) 4
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Progressive
Spider Diameter (mm) 251
Spider Design 2×2, spacer, 2×2
Surround Tall Smooth
Surround Material Foam
Tinsel Wire Double
Terminal Push
