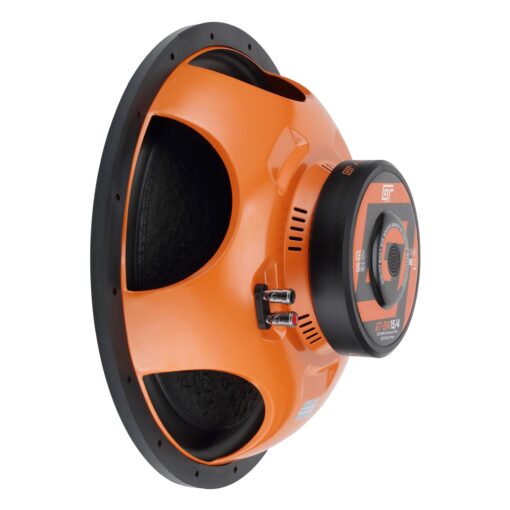

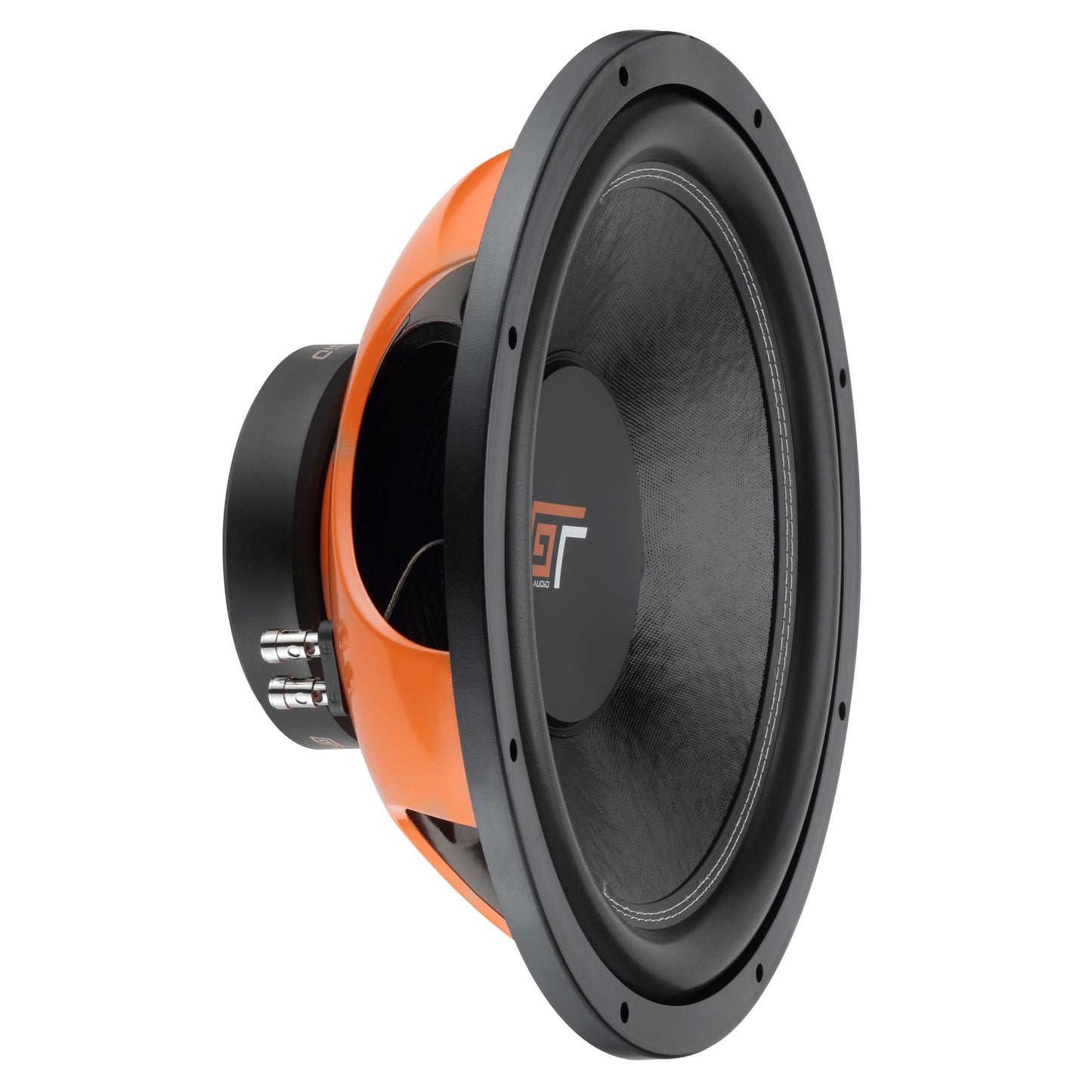

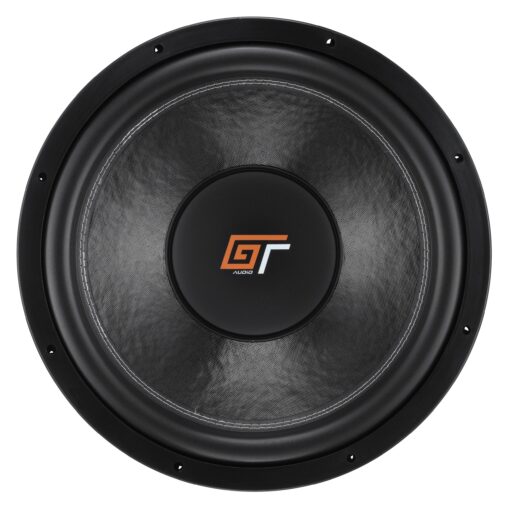

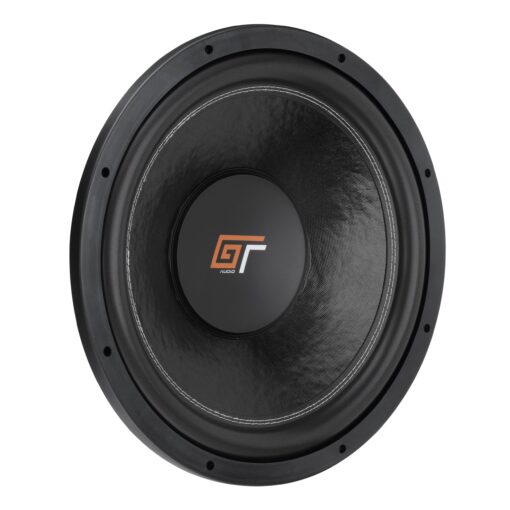

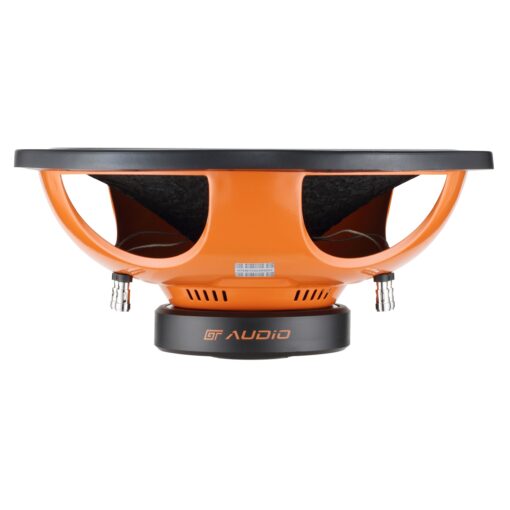

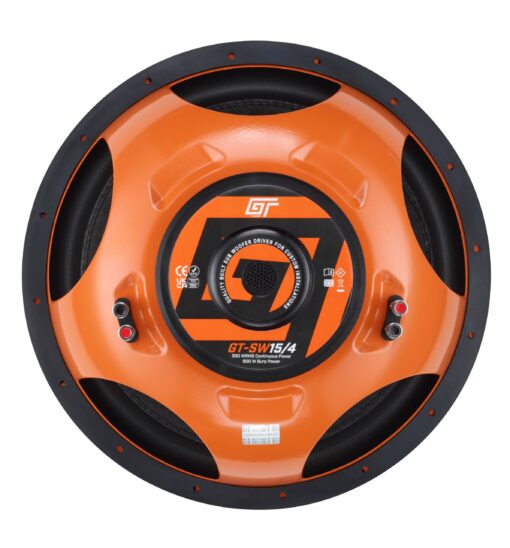

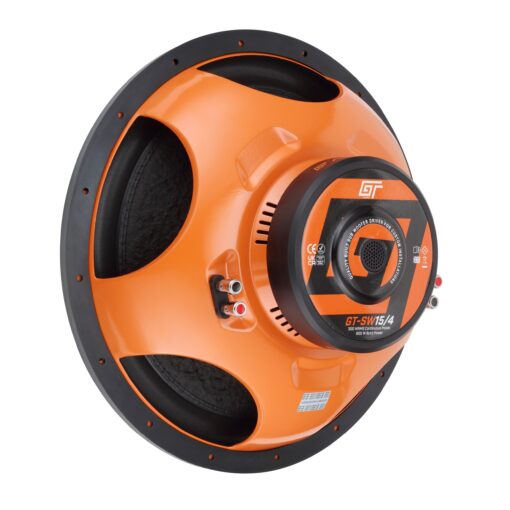

GT Audio GT-SW15/4 15'' 38cm 2x4Ohm DVC Subwoofer 300w RMS

Subwoofer doppia bobina di qualità che offre prestazioni senza costi eccessivi. Costruzione leggera per prestazioni efficienti anche se alimentato da amplificatori modesti. Basso estremamente musicale, in stile “old school”. La gamma GT-SW vuole essere un ritorno al passato e restituisce quel suono emozionante, duro e trascinante. Prestazioni dei bassi imbattibili per la fascia di prezzo.

Descrizione

SPEAKER DATA
Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 600
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 300
Overall Diameter (mm) 390
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 158
Installation Cut-Out Diameter (mm) 356
Overall Depth (mm) 175
Mounting Depth (mm) 155
Front Protrusion From Mounting Plane (mm) 20
System Frequency Response (Hz) 30>500
Impedance (Ohm) (Nominal) 4+4
Sensitivity (db/1Wm) 91
Total Magnet Weight (Oz) 48
Magnet Size (mm) 156×20
Magnet Type Y25
Magnet Qty 1
Top Plate thickness (mm) 8
Back Plate Thickness (mm) 8
Optimum Bass Enclosure Type Ported/Sealed
Recommended Bass Enclosure Volume (CuFt) 6.88
Recommended Bass Enclosure Tuning Frequency (Hz) 32
Voice Coil Former Spec Aluminium
Voice Coil Type Copper Round Wire
Voice Coil External Diameter (mm) 63.92
Voice Coil Internal Diameter (mm) 63.5
Voice Coil Winding Height (mm) 20
Voice Coil Winding (Layers) 4
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 176
Spider Design 1×1
Surround Smooth
Surround Material Foam
Tinsel Wire Single
Terminal Spade

KEY FACTS
Product Category Subwoofers
Version 1
Series GT Audio
Date Added 12/06/2023
Date Modified 14/12/2023
Barcode 5060905111435
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 4500
Product Height (mm) 175
Product Length (mm) 390
Product Width (mm) 390
Complete Product Pack Weight (g) 5000
Retail Carton L (mm) 403
Retail Carton W (mm) 403
Retail Carton H (mm) 178
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) – Private Enjoyment Use Only 12
Sold As Single

TECHNICAL HIGHLIGHTS
300W Continuous RMS / 600W Burp Power Handling
2.5 Inch Dual 4 Ohm Round Wire 4 Layer Voice Coil
Works In Free Air Or Ported/Sealed Enclosures 6.88 Cuft
Linear Medium Compliance 1×1 Spider Pack
Smooth Foam Surround & Non Pressed Paper Cone
High Quality Y25 Magnet 156x20mm

WHAT’S IN THE BOX?
1 x Subwoofer
1 x Data Sheet
1 x GT Audio Sticker
