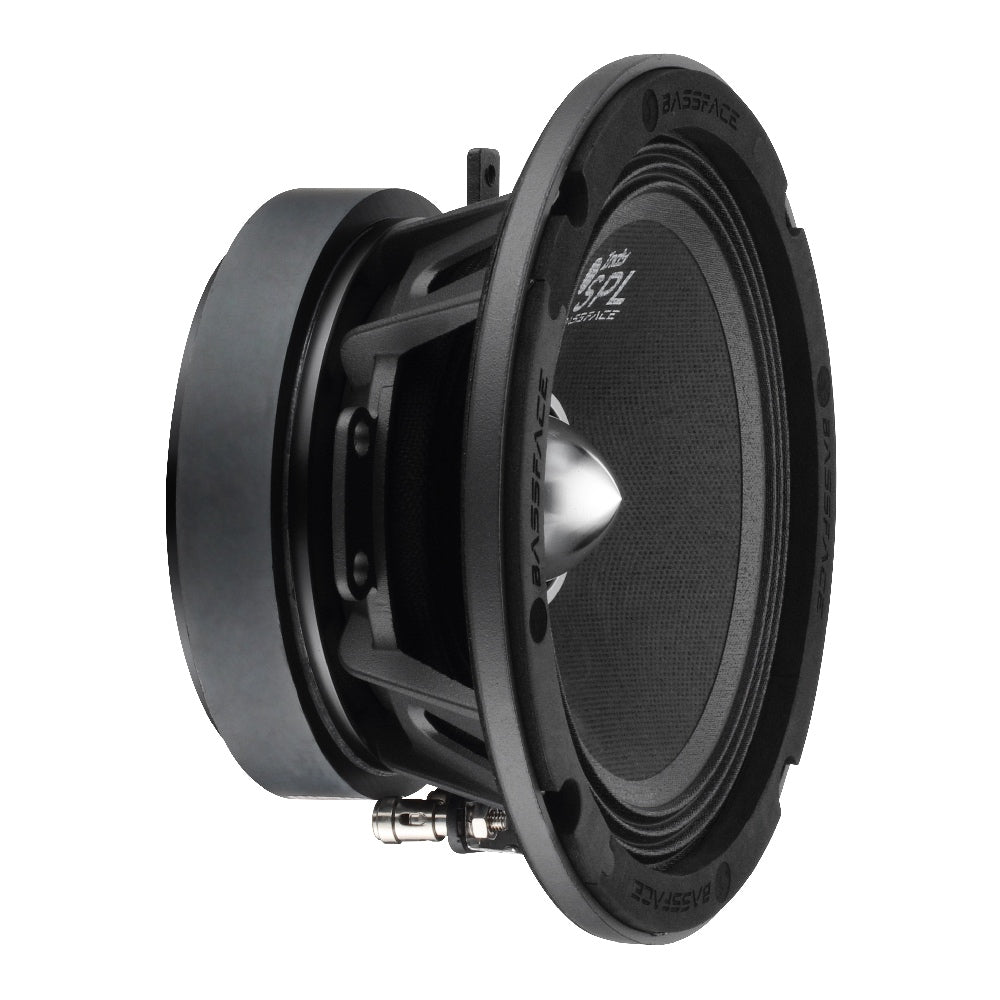

Indy SPL6M/4 - Midrange 16,5 cm -150 w rms High Spl - Singolo

La serie Indy SPL nasce sulle impronte della  serie SPL, nota per le sue caratteristiche in termini di efficienza e risposta in frequenza. Su questa nuova versione abbiamo ottimizzato alcuni dettagli rendendo gli altoparlanti a nostro avviso ancora più ricercati tra gli appassionati di alta efficienza

Descrizione

SPEAKER DATA
Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) 150
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 120
Overall Diameter (mm) 174
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 120
Installation Cut-Out Diameter (mm) 147
Overall Depth (mm) 87.5
Mounting Depth (mm) 72.5
Front Protrusion From Mounting Plane (mm) 15
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 50-10000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 92.5
Total Magnet Weight (Oz) 30
Magnet Size (mm) 120*20*1pc
Magnet Type Y35
Magnet Qty 1
Top Plate thickness (mm) 6
Back Plate Thickness (mm) 6
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil External Diameter (mm) 40
Voice Coil Winding (Layers) 2
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 108
Spider Design Single
Surround Triple Roll
Surround Material Cloth
Tinsel Wire Single
Terminal Push

TECHNICAL HIGHLIGHTS
Copper Shorting Ring (Faraday Ring) for Optimum Impedance Profile
1.5″ High Temperature Voice Coil
Lightweight Paper Cone
Push Terminals
Large Ceramic Magnet
Cast Aluminium Basket
