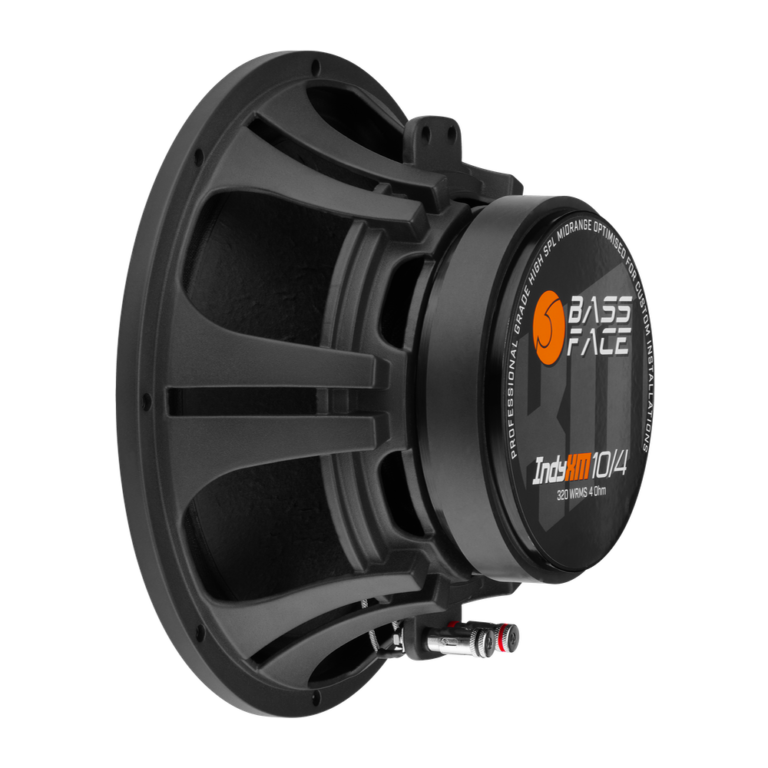

IndyXM10/4 - Coppia Midrange 25 cm 4 ohm 320 w rms High Spl Competition - PAIR

Descrizione

SPEAKER DATA
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 320
Overall Diameter (mm) 259
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 145
Installation Cut-out Diameter (mm) 238
Overall Depth (mm) 123
Mounting Depth (mm) 123
Front Protrusion From Mounting Plane (mm) 9.8
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 100-8,000
Impedance (Ohm) (Nominal) 4
Total Magnet Weight (Oz) 53.3
Magnet Size (mm) 145*25
Magnet Type Y35
Magnet Qty 1
Top Plate thickness (mm) 8
Back Plate thickness (mm) 8
Recommended Cable TeamOFC2.5TPM
Voice Coil Former Spec Kapton
Voice Coil Type CCA
Voice Coil Internal Diameter (mm) 60.5
Voice Coil External Diameter (mm) 62.95
Voice Coil Winding Hight (mm) 13
Voice Coil Winding (Layers) 2
Cone Type Coated Paper
Spider Type Linear
Spider Diameter (mm) 160
Spider Design Single
Surround Dual Roll
Surround Material Cloth
Tinsel Wire Dual
Terminal Push

TECHNICAL HIGHLIGHTS
High End Cast Basket
Copper Shorting Ring (Faraday Ring) for Optimum Impedance Profile
Lightweight Coated Paper Cone
Push Terminals
Heavy Duty Fabric Spider
Custom CNC Machined Bullet Phase Plug for a Smoother Response Cerf
Light weight copper coated coil for a more musical response
Dual tinsel leads for fail-safe in extreme use
Y35 53 Oz Magnet Structure
Large Ceramic Magnet

KEY FACTS
Product Category Midbass & Midrange Speakers
Version 1
Series Indy
Barcode 680044778631
Production Status In Build
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 4552
Complete Product Pack Weight (g) 4917
Retail Carton L (mm) 275
Retail Carton W (mm) 275
Retail Carton H (mm) 115
Warranty (Months) 12
Sold As Single

TS PARAMETERS
Test Conditions After full brake in
Re (Ohm) 3.10
Le(mH) 0.080
L2(mH) 0.706
R2(Ohm) 2.90
Cmes(uF) 385.65
Lces(mH) 12.09
Res(Ohm) 59.54
Fs(Hz) 73.7
Mms (g) 30.757
MMd (g) 23.473
Rms(kg/s) 1.339
Cms(mm/N) 0.152
Kms(N/mm) 6.60
BL (T m) 8.930
Lambda s 0.070
Qtp 0.532
Qms 10.635
Qes 0.553
Qts 0.526
Vas (Ltr) 25.7319
n0(%) 1.791
Lm(dB) 94.73
SPL nom(dB) 95.84
rmse Z(%) 2.75
rmse Hx(%) 1.43
Sd(cm2) 346.36
Xmax Single Way Total (mm) 2.5
