LaVoce - 8-15" woofer 4"VC Al basket FeMagnet. - V-WAF154.01
LaVoce - 8-15" woofer 4"VC Al basket FeMagnet. - V-WAF154.01
Prezzo di listino
€268,00 EUR
Prezzo di listino
Prezzo scontato
€268,00 EUR
Prezzo unitario
/
per
Imposte incluse.
Impossibile caricare la disponibilità di ritiro
SUBWOOFER 15 " FERRITE MAGNET ALUMINIUM BASKET DRIVER FEATURES - 4 INCH COPPER VOICE COIL - 97 dB/SPL SENSITIVITY - 2000 WATT PROGRAM POWER HANDLING - FEM OPTIMIZED MOTOR AND SUSPENSIONS - OPTIMIZED COOLING SYSTEM - ALUMINIUM DEMODULATING RING - DOUBLE SILICON SPIDER - RESONANCE FREE AND HEAVY DUTY BASKET DESIGN - TRIPLE ROLL SURROUND
GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
380 (15)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
6,8
Program power
W
2000
AES Power rating
W
1000
Sensitivity
dB
97
Frequency range
Hz
40 ÷ 1000
Voice coil diameter
mm (in)
100 (4)
Chassis material
Aluminium
Magnet material
Ferrite
Magnet dimensions OD x ID x h
mm (in)
220x120x25 (8.66x4.72x0.98)
Coil material
Copper
Former material
Glass Fiber
Cone material
Water Proof Treated Paper
Surround material
Polycotton
Xmax
mm (in)
10,3 (0.4)
Xmech
mm (in)
17,3 (0.68)
Gap height
mm (in)
12 (0.47)
Voice coil winding height
mm (in)
26,5 (1.04)
Driver displacement volume
l (ft³)
5,4 (0.19)
SMALL SIGNAL PARAMETERS
DC resistance
Ohm
5,3
Resonance frequency
Hz
42
Moving mass
g (oz)
162,8 (5.74)
Compliance
mm/N
0,09
Force factor
N/A
26,3
Mechanical Q-factor
5,5
Electrical Q-factor
0,32
Total Q-factor
0,30
Equivalent air volume
l (ft3)
86 (3.04)
Voice coil inductance
mH
1,70
Diaphragm area
cm2 (in.2)
830 (128.65)
Reference efficiency
1,80%
SHIPPING INFORMATION
Net weight
kg (lb)
13,3 (29.2)
Multipack size W x D x H
mm x mm x mm (in x in x in)
438 x 438 x 230 (17.2 x 17.2 x 9.1)
Multipack weight
kg (lb)
15,3 (33.6)

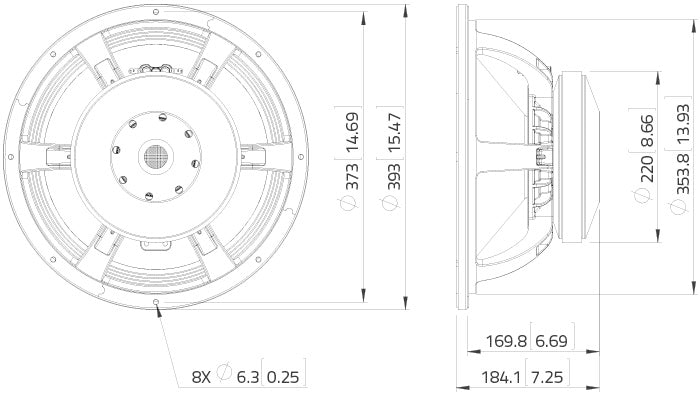

DIMENSIONS mm (in.)
